เครื่องฟังเสียงเต้นหัวใจทารกในครรภ์แบบพกพา

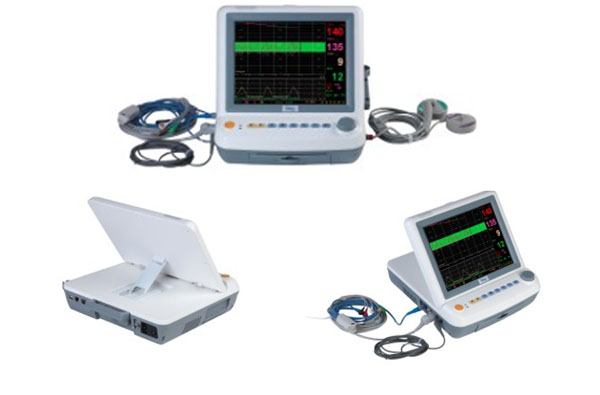

Fetal Monitor : Model : JPD-600P ( 12.1inch )

Product introduction

•  The monitor of lightweight and space-saving.

•  It can meet the need of whole stages of labor(including antepartum and  intrapartum monitoring for fetus and mother).

•  It  also can be connected to the obstetrical central station.

Options

•  Twins monitor interface,Twins FHR measurement.

•   Built-in network/PC/conecting interface.

•  FAS (fetal acoustic stimulator).
Features

•  Light weight,space-saving,easy operations

•   Interface of parameters FHR,TOCO,Fetal Movement,ECG,SpO 2 ,NIBP,RESP,TEMP,Pulse Rate with display.

•  Battery indication ,pregnant No.Display

•  Alarm/system.

•  12-inch TFT color Folding up to 90 degree.

•  Built-in152 mm long life thermal printer.

•  DSP technology,real time identify and measurement for FHR,accurate and reliable results.

•  Special high sensitive water proof probe

•  72 hours data storage which can be playback and printed.

•  Special patient event and clinical event marking button.

•  Low ultrsound power ,to fetus safety.

•  Wide range of applying voltage(100-240V)

•  Manual/auto test FM



Specification
FHR:

•  Ultrasound Probe:Multi-wafer,wave-beam,high sensitive

•  Ultrasound frequency:1MHz+5%

•  Ultransound intensity:<5mW/cm 2

•  FHR range:30-210bpm
Alarm Limit:

•  Upper Limkit:160,170,180,190bmp

•  Lower limit:90,100,120bmp
TOCO:

•  TOCO range:0-100(relative unit)

•  Resolution: Non-linear error:<+5%

•  Fetal Movement: Buton Hand Count(Automatic cumulative number of movements)
